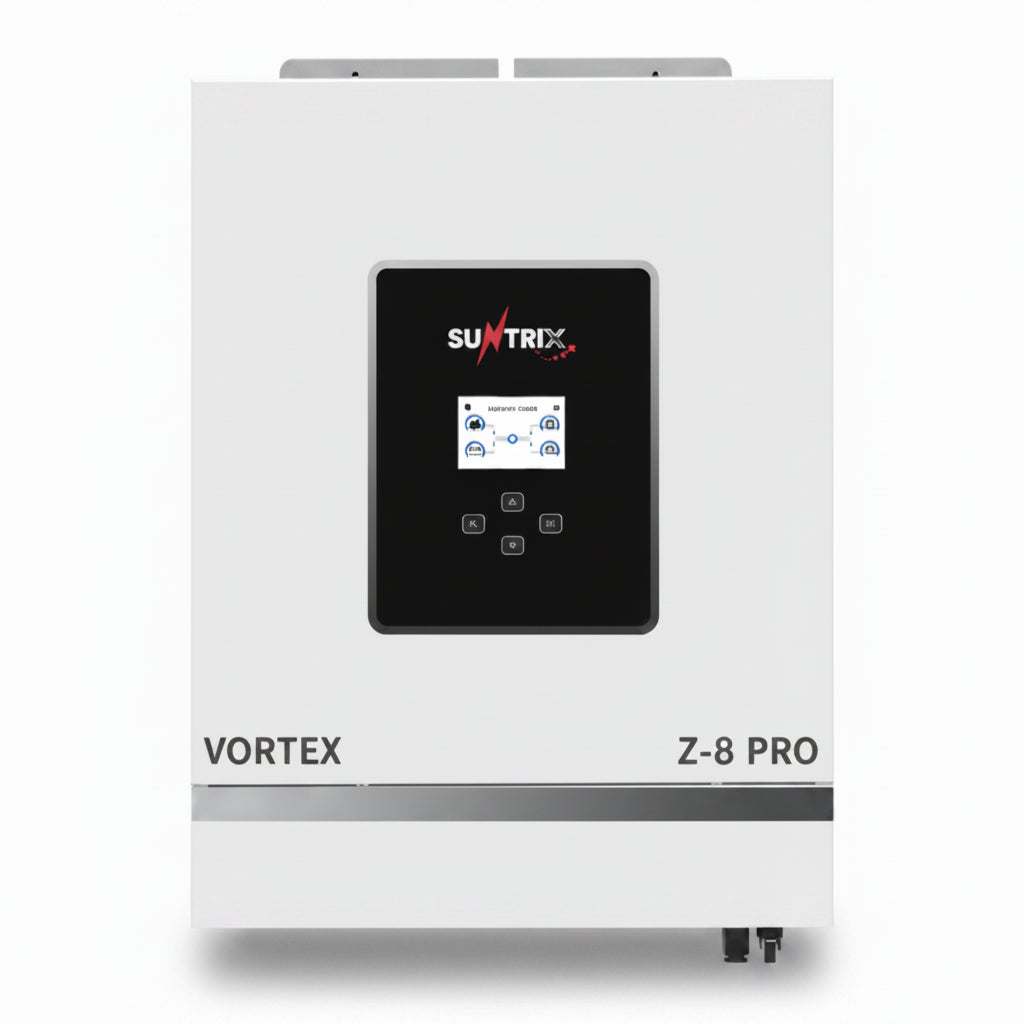

The Suntrix Vortex Z-8 PRO is an 8kW solar inverter built for medium-sized homes, shops, and small commercial loads in Pakistan. With dual MPPT trackers, an IP54 weatherproof enclosure, and 15,000W (2 × 7500W) max PV input, the Z-8 PRO captures more solar energy from larger or split-roof arrays while delivering a clean 8000VA / 8000W pure sine wave output. Featuring built-in Wi-Fi for remote monitoring via the SmartValue App, smart load management with dual AC output, 48V lithium/lead-acid battery support with up to 160A charging current, and parallel scalability up to 6 units (48kW total), the Vortex Z-8 PRO is engineered for serious solar performance. The 10ms UPS-grade switch time, 98% peak efficiency, 60–450V wide MPPT range, and full suite of safety protections make it the smart upgrade for net-metering, backup, and off-grid systems. Backed by Suntrix's 5-year warranty (3 years parts + 2 years service).
Rated Power
8000W/8000VA
Model Name
VORTEX Z-8 PRO
Max. PV Input Voltage(V)
500
Max. Current per MPPT(A)
27/27
MPPT Voltage Range(V)
60-450
Number of MPPT Trackers
2
Max. PV Input Power(W)
2×7500
Output Voltage Waveform
Pure Sine Wave
Rated voltage
220/230/240VAC
Rated AC Output Power(W)
8000
Rated Frequency
50/60Hz
Switch Time(ms)
10mS (@UPS)
Rated Output Current(A)
34.8
Max Efficiency
98%
Peak Output Power, Time
60S@102%-125% Load: 10S@ 125%
Rated voltage
220/230/240V
Voltage range(V)
170-280VAC±3V (UPS mode)
Rated Frequency
50/60Hz
Input Type
L+N+PE
Max. Charging Current(A)
160
Float Charging Voltage(V)
54
Battery Voltage(V)
48
Battery Type
Lithium, Lead-acid
Integrated
Over Current Protection / Over and under Voltage Protection / Output Short Circuit Protection / Over-temperature protection / Over and under Frequency Protection / Surge Protection
Operating Temperature Range
-10°C to 60°C
Installation method
Wall-mounted
Max. Operating Altitude(m)
Derating over 1000m, Max 4000m, Refer to IEC62040
Weight(kg)
20
Protection Degree
IP54
Dimension(W×H×D,mm)
550 X 410 X 130
Number of parallel
6
Relative Humidity
5% - 95% (Non-condensing)
Standard
IEC61683, IEC61000, IEC 62109-1/2
Display
LCD
Communication
RS232, Wi-Fi, RS485
