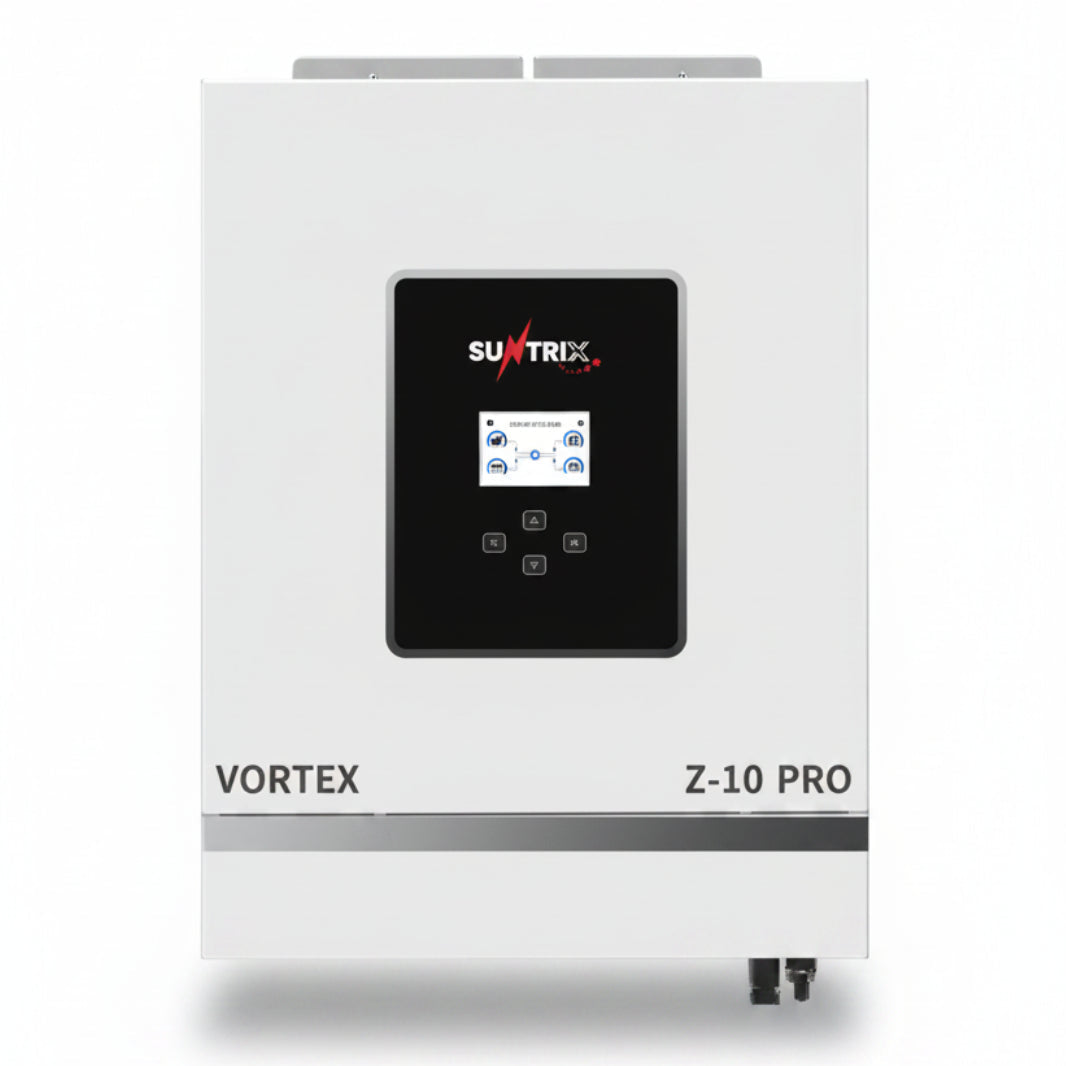

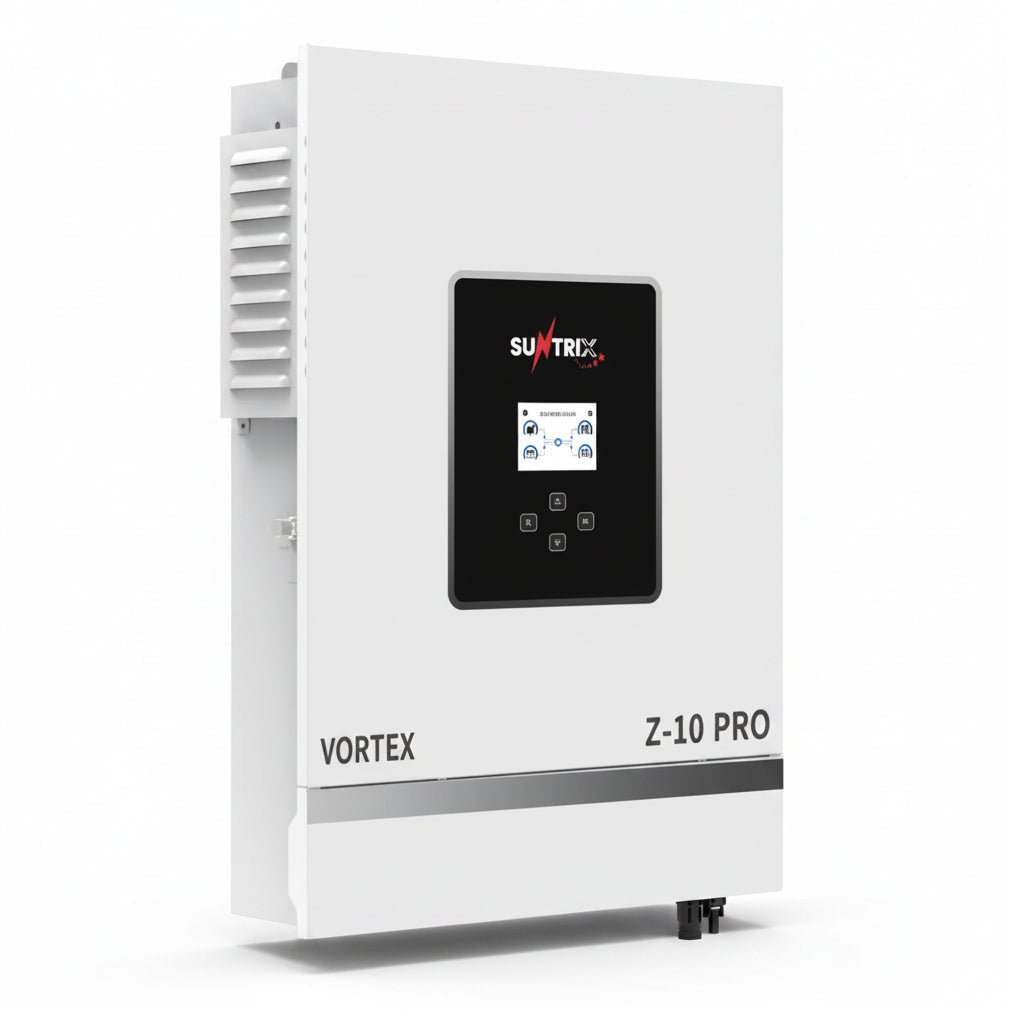

The Suntrix Vortex Z-10 PRO is a powerful 10kW solar inverter designed for large homes, commercial buildings, farms, and net-metering systems across Pakistan. Equipped with dual MPPT trackers (2 × 7500W = 15,000W max PV input), an IP54 weatherproof enclosure, and a wide 60–450V MPPT range, the Z-10 PRO maximizes solar harvest under variable conditions while delivering a reliable 10000VA / 10000W pure sine wave output. With built-in Wi-Fi and the SmartValue App for remote monitoring, smart load management via dual AC output, support for 48V lithium and lead-acid batteries (up to 160A charging), and parallel scalability up to 6 units (60kW total), the Vortex Z-10 PRO is engineered for serious solar investors. Its 10ms UPS switch time, 98% peak efficiency, comprehensive electrical protections, and IEC-certified compliance make it an ideal choice for backup, grid-tie, and off-grid solar installations. Backed by a 5-year Suntrix warranty (3 years parts + 2 years service).
Rated Power
10000W/10000VA
Model Name
VORTEX Z-10 PRO
Max. Current per MPPT(A)
27/27
MPPT Voltage Range(V)
60-450
Max. PV Input Power(W)
2 x 7500
Number of MPPT Trackers
2
Max. PV Input Voltage(V)
500
Output Voltage Waveform
Pure Sine Wave
Rated Frequency
50/60Hz
Rated voltage
220/230/240VAC
Rated Output Current(A)
43.5
Switch Time(ms)
10mS (@UPS)
Max Efficiency
98%
Peak Output Power, Time
60S@102%-125% Load: 10S@ 125%
Rated AC Output Power(W)
10000
Rated Frequency
50/60Hz
Voltage range(V)
170-280VAC±3V (UPS mode)
Input Type
L+N+PE
Rated voltage
220/230/240V
Battery Voltage(V)
48
Float Charging Voltage(V)
54
Max. Charging Current(A)
160
Battery Type
Lithium, Lead-acid
Integrated
Over Current Protection / Over and under Voltage Protection / Output Short Circuit Protection / Over-temperature protection / Over and under Frequency Protection / Surge Protection
Communication
RS232, Wi-Fi, RS485
Max. Operating Altitude(m)
Derating over 1000m, Max 4000m, Refer to IEC62040
Weight(kg)
20
Dimension(W×H×D,mm)
550 x 410 x 30
Relative Humidity
5% - 95% (Non-condensing)
Protection Degree
IP54
Installation method
Wall-mounted
Display
LCD
Number of parallel
6
Standard
IEC61683, IEC61000, IEC 62109-1/2
Operating Temperature Range
-10°C to 60°C
